PORTLAND, Ore. — When you think 3D chips you usually think stacked dies connected by through-silicon vias (TSVs). There have been a few techniques that don't use TSVs, such as the vertical transistor arrays that BeSang Inc. recently licensed to South Korea's SK Hynix. But a novel new technique using low-temperature materials, funded by the Semiconductor Research Corporation (SRC) at the University of California at Berkeley, claims to be the most flexible and inexpensive method of fabricating 3D chips yet.
The technique fabricates active devices interleaved between the metalization layers atop a standard CMOS die, thus eliminating the expense of vertically stacked transistors or of stacking dies with TSVs.
"To me the exciting part of this is that it is a monolithic integration, as opposed to the chip stacking techniques that have been used for 3D integration thus far," Bob Havemann, director of Nanomanufacturing Sciences at SRC, told EE Times. "This method offers a lot more flexibility at a much lower cost."
Using active devices between top layers of metalization puts a useful new tool in the chip designers toolbox.
"This offers a whole new dimension in design -- being able to put active devices between any metalization layer. Designers are going to go crazy with this stuff. Their dream has been to be able to put active devices just willy nilly at any level they like, to increase functionality and get the performance they want, and now they can do it."

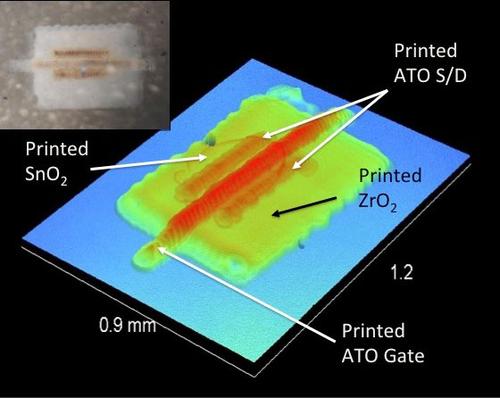

Interferometric thin-film transistor printed above a CMOS substrate metalization layer covered with oxide (blue).
To be sure, the transistors that can be fabricated at temperatures low enough to not disturb the lower CMOS chip layers are limited in performance, but the Berkeley team claims that these low-temperature materials are useable today and will only get better in the future
"There are a range of oxide materials using tin, indium, zinc, and gallium that engineers have been developing primarily for display applications," Vivek Subramanian, professor of Electrical Engineering and Computer Sciences at UC Berkeley, told us. "But the performance numbers are getting high enough and the deposition temperatures low enough that they are looking very interesting for integrating over CMOS metalization."
The technique works by first fabricating the CMOS chip and its first layer of metalization. After that, the designer has the option of adding more active devices between each layer of metalization, which on modern chips can be as many as 15 layers.
"It turns out you can make reasonably high-performance transistors on top of CMOS metalization using these materials deposited out of solution using spin-coating and various types of printing techniques," says Subramanian.
Next Page: Experimental
