Lowest Power MEMS Mic Cuts Noise

7/6/2014 00:00 AM EDT
6 comments
NO RATINGS
More Related Links
View Comments: Threaded | Newest First | Oldest First
goafrit
User Rank
Manager
MEMS Noise
goafrit   7/6/2014 3:57:20 PM
NO RATINGS

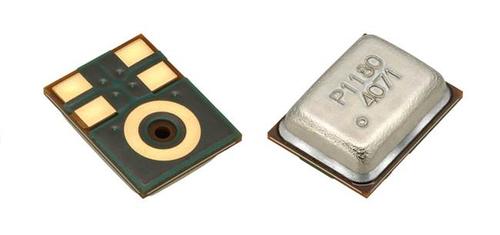

>> Knowles claims its world's lowest-power MEMS mic with a signal-to-noise (SNR) of 64.3 dB measures just 3.50 x 2.65 x 0.98 millimeters. (Source: Knowles)

It is fair to say that Knowles could be right. They are the industry leading mic MEMS maker. Though ST takes the bulk of the business because of its scale and business with Apple, Knowles does a lot of great works in this space.

R_Colin_Johnson
User Rank
Blogger
Re: MEMS Noise
R_Colin_Johnson   7/6/2014 9:33:58 PM
NO RATINGS
Knowles has a 59 percent share of the global market according to IHS and has two mics in the iPhone5s according to Yoles.

goafrit
User Rank
Manager
Re: MEMS Noise
goafrit   7/9/2014 8:34:04 PM
NO RATINGS
>> Knowles has a 59 percent share of the global market according to IHS and has two mics in the iPhone5s according to Yoles.

Makes sense because I knew when we struggled in the industry to get pass the IPs Knowles has in MEMS micr. They have eaten the launch in this sector and will continue to stay on top unless they blow it. It is like in XL, there is one patent ST has in charge pump that enables you to ramp up  voltage that makes everyone struggle.

DrFPGA
User Rank
Blogger
Serial PDM
DrFPGA   7/6/2014 5:37:33 PM
NO RATINGS
Too bad its not a moe standard interface. Perhaps this would increase power requirements? If so, maybe we need a new very low power seial interface standard....

R_Colin_Johnson
User Rank
Blogger
Re: Serial PDM
R_Colin_Johnson   7/9/2014 7:26:22 PM
NO RATINGS
I finally got an answer as to why they use PDM. Here's what they say:

"We selected the PDM interface based on our experience working with major OEMs around the world and the industry's adoption of PDM as the standard microphone interface. Within the analog-to-digital conversion, the PDM interface allows the microphone to contain the entire analog process with a digital output to the Codec or application processor. A digital output from the microphone enables the Codec and application processor to be more efficient in terms of size, scale, and power consumption. This also helps eliminates the need for a high power analog-to-digital converter between the microphone and the Codec or application processor."

DrFPGA
User Rank
Blogger
Re: Serial PDM
DrFPGA   7/9/2014 10:56:51 PM
NO RATINGS
Thanx for the follow-up. Looks like they target the high volume (application processor) market so PDM makes sense...
