R_Colin_Johnson
User Rank
Author
Re: Cadence Innovus Implementation System has been qualified on Samsung Foundry’s latest 10-nanometer (10nm) process.
R_Colin_Johnson   2/21/2016 5:48:16 PM
NO RATINGS
I love your predictions that the "7nm FinFET is the last FinFET device to be manufactured but will provide also the largest inversion currents." Your deep understanding of the processes and the approaching end of the International Technology Roadmap for Semiconductors will be of great value to all out readers. Thank you for taking the time to share you wealth of semiconductor knowledge. BTW what do you think lies beyond the end of the road?

michigan0
User Rank
Author
Cadence Innovus Implementation System has been qualified on Samsung Foundry’s latest 10-nanometer (10nm) process.
michigan0   2/21/2016 5:02:33 PM
NO RATINGS
Sang Kim


Cadence Design Systems recently announced that the Cadence
Innovus Implementation System has been qualified on
Samsung Foundry's latest 10-nanometer (10nm) process. With
no 22nm and 14nm FinFET process and manufacturing
learnings, Samsung, however, appears to have qualified 10nm
FinFET process leapfrogging Intel and TSMC. Lets take a close
look.

Intel's first 22nm FinFET in volume manufactured for a number
of years has the flowing three distinct regions: 1) largest
periphery region with finW(width) equal to 22nm at the bottom
to finW=7nm at the top. 2) the smallest inversion region with
finW equal to 7nm at the bottom to 4nm at the top and 3) a
small dome shaped structure at the bottom equal to 4nm and
upward is subject to quantum mechanical confinement effects
or not subject to the classical device physics, thus it doesn't
contribute to the device drive currents. Therefore, the largest
drive currents or on-currents for 22nm FinFET are contributed
by the periphery regions.

Intel's 14nm FinFET is volume manufactured for almost three
years. Where does the Intel's 14nm drive currents or on-currents come from? They don't come all from the periphery
regions because the periphery regions significantly decrease
at 14nm FinFET while the inversion region increases. The
increase in inversion region possibly more than compensate
the decrease in the periphery region.

Intel's 10nm FinFET will be manufactured possibly in 2016 or
this year. The periphery region further decreases but the
inversion region increases significantly compared with 14nm
FinFET resulting in larger inversion currents for 10nm FinFET.

The uniqueness of 7nm FinFET is that the periphery region
no longer exists, Instead the entire 7nm FinFET channel is
now inverted, showing the the largest inversion currents.
The 7nm FinFET, however, is the end of FinFET technology
because 5nm FinFET and below can't be manufactured
because depositing such ultrathin 5nm filum uniformly and
reliably over 12" wafers at the manufacturing line is
extremely difficult or not manufacturable, thus the end
of FinFET technology, also the end of ITRS(International
Technology Roadmap for Semiconductors). Therefore, 7nm
FinFET is the last FinFET device to be manufactured but
will provide also the largest inversion currents.

R_Colin_Johnson
User Rank
Author
Re: Uiqueness of 7nm FinFET
R_Colin_Johnson   2/11/2016 10:26:58 AM
NO RATINGS
Thank you for your updated analysis of IBM's 7nm process. A lot has happened since it was published in July 2015. IBM was claiming that its 7nm process leapfrogged Intel in the research lab, not in production. Of course, since then Intel has released more details about its quest for 5nm, making IBM's claim almost irrelevant now in 2016. Nevertheless, thank you for your valuable insights--I and many of our readers, I'm guessing--learned a thing or two from you deep understanding of advanded nodes. Thanks again.

michigan0
User Rank
Author
Uiqueness of 7nm FinFET
michigan0   2/10/2016 11:21:04 PM
Sang Kim


Intel's 22nm and 14nm FinFETs are volume manufactured for
over 2 years or more and TSMC's 16nm FinFET will be
manufactured possibly in 2016 or this year. The FinFET's drive
currents predominantly come from the periphery regions for
22nm, 14nm and 10nm FinFETs.

The uniqueness of 7nm FinFET is that its drive currents don't
come from peripheries any more because 7nm FinFET dose
not have such periphery regions that 22nm, 14nm and 10nm
FinFETs have but shows the largest drive current or on-current. Then where such largest drive current comes from?
Along the peripheries? FinW(width) equal to 7nm at the bottom
and 4nm at the top is so narrow that the entire 7nm FinFET
area becomes fully inverted or volume inverted just like a
double gate transistor resulting in large inversion or volume
inversion currents.

The key issue with 7nm FinFET is how can suppress the leakage
currents due to the short channel effects for such short channel
7nm FinFET? According to FinFET device physics as long as
finW(width) at the bottom of fin is equal to or smaller than gate
length(Lg) or channel length, the leakage currents are
suppressed. That is why 7nm FinFET is considered as the end of
ITRS(International Roadmap for Semiconductors). This is
because the 5nm FinFET and beyond can't be manufactured
because depositing such ultrathin 5nm filum uniformly and
reliably across 12" wafers at the manufacturing line is
extremely difficult or not manufacturable. If not
manufacturable, the end of the debate! That is why 7nm FinFET
is the last node to be manufactured.





michigan0
User Rank
Author

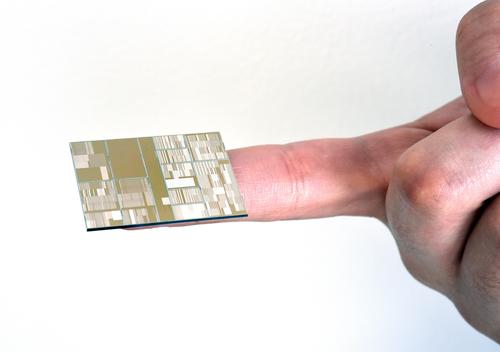

IBM Leapfrogs Intel to 7nm
michigan0   1/24/2016 5:44:06 PM
NO RATINGS
Sang Kim


First, Intel's 22nm FinFETs and 14nm FinFETs are in mass
production over 2 years and 10nm FinFETs are manufactured
possibly in 2016 or this year. TSMC's 16nm FinFETs are
manufactured possibly in 2016 or this year also but IBM and
its Alliance members have not manufactured FinFET at any
technology node yet but that doesn't rule out that IBM could
leapfrogs Intel to 7nm as claimed although it appears to be
now an impossible task for IBM to skip several FinFET tech
nodes and with no prior process and manufacturing learnings.
These are the big challenges for IBM's 7nm tech race. lets
take a close look.

The uniqueness with 7nm FinFET is that the overall finW
(width) equal to 7nm(bottom) to 4nm(top) is so narrow
that inversion or volume inversion takes place as occurs in
the double gate transistors resulting in large inversion or
volume inversion currents. Therefore, the implementation
of IBM's secret sauce or the silicon germanium channel is
not only unnecessary even if manufacture-able but
detrimental because inversion or volume inversion can't
take place in the dopped channel such as silicon germanium
channel.

In my opinion the right question should be, can IBM leapfrog
Intel to 7nm? Instead of "IBM leapfrogs Intel to 7nm". The
answerer to that question is already answered above,
not likely!

resistion
User Rank
Author
Re: Unavoidable defects (paper by IBM and Toppan)
resistion   8/13/2015 9:44:04 AM
NO RATINGS
It's relatively hot off the press. They hadn't talked about this in a while, so it was a good update. It's not so node-specific, by the way. And of course, very limited audience announcement.

R_Colin_Johnson
User Rank
Author
Re: Unavoidable defects (paper by IBM and Toppan)
R_Colin_Johnson   8/13/2015 9:35:31 AM
NO RATINGS
Very interesting--I haven't seen that paper. I suppose at 7nm even atomic-sized defects could affect yields. There's still a long-way to go to perfect EUV.

resistion
User Rank
Author
Unavoidable defects (paper by IBM and Toppan)
resistion   8/13/2015 9:06:25 AM
NO RATINGS
ENDEAVOUR to Understand EUV Buried Defect Printability

Photomask Japan 2015: Photomask and Next-Generation Lithography Mask Technology XXII

Proc. of SPIE Vol. 9658, 96580G

NAP-PD (Native Acting Phase – Programmed Defects), otherwise known as buried program defects, with attributes very similar to native defects, are successfully fabricated using a high accuracy overlay technique. The defect detectability and visibility are analyzed with conventional phase contrast blank inspection @193 nm wavelength, pattern inspection @193 nm wavelength and SEM. The mask is also printed on wafer and printability is discussed. Finally, the inspection sensitivity and wafer printability are compared, leading to the observation that the current blank and pattern inspection sensitivity is not enough to detect all of the printable defects. © (2015) COPYRIGHT Society of Photo-Optical Instrumentation Engineers (SPIE). Downloading of the abstract is permitted for personal use only.

These defects are less than 1 nm tall (atomic height), yet can affect printing.

resistion
User Rank
Author
Re: Increasing the Yield
resistion   8/13/2015 9:02:21 AM
NO RATINGS
Yes the energy output needs to be much more than today. Then there is enough to expose the resist, as the mirror layers start to melt into each other.

resistion
User Rank
Author
Re: Multiple passes
resistion   8/13/2015 9:00:59 AM
NO RATINGS
Is it really 65 eV, the usual source is 13.5 nm or 92 eV. But you are right about the higher photon energy and its very easy absorption. More energy goes into the mirrors than exposing the resist (unlike ArF immersion).

I doubt EUV will smooth things out without a significantly higher dose than used for ArF, that's to keep the number of EUV photons in your scheme comparable to the number of ArF photons.

Interesting thoughts.

Despite IBM's appearance of championing EUV, I found a paper this year where they clearly showed mask defects that cannot be detected today, and probably unavoidable anyway. More on this below.
