# How to Solve 8 of 10 Design Issues

Steve Sandler finds that eight out of 10 design issues are due to a single problem that is easy to solve.

The vast majority of design issues are directly or indirectly attributable to control loop stability. The most common offenders:

- Linear regulators
- Voltage references
- Op-amps

The control loop stability of these devices can propagate through an entire system. Symptoms include:

- EMI
- Increased circuit noise
- Clock jitter

These are all simple circuits, so why is this a common issue?

**We are not clear on the definition of stability**

In the high-reliability world, including satellite systems, where I do most of my troubleshooting, stability means a minimum phase margin of 30 degrees and a gain margin of 6dB at the end of life, including all component variations and environmental factors. There are guidelines that define the stability margin limits, and one of our tasks is to ensure that margin.

This requirement is not well aligned with the information given out by manufacturers. They generally do not provide quantifiable metrics for the stability of their devices. In many cases, the devices will not meet a 30-degree phase margin even typically when coupled with low-ESR capacitors. The definition of stability in the semiconductor world seems to be whether the circuit has a stability margin that is greater than zero.

**Component manufacturers drive us to it through recommendations**

In some cases, manufacturers provide recommendations. One example I often use is the REF02 voltage reference. The manufacturer's datasheet *highly recommends* the addition of a 0.1uF output capacitor on the voltage reference.

The highly recommended output capacitor is shown in two different schematics in the datasheet.

**Inability to measure directly**

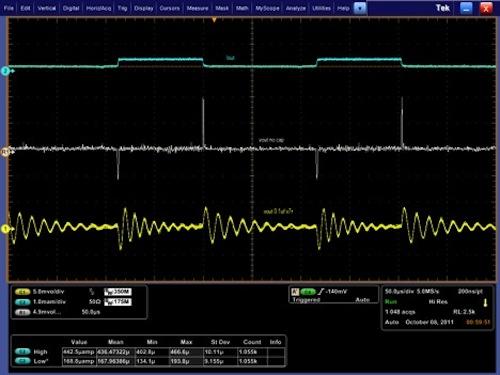

The results of following this recommendation can be seen in the ringing produced by a small signal step load.

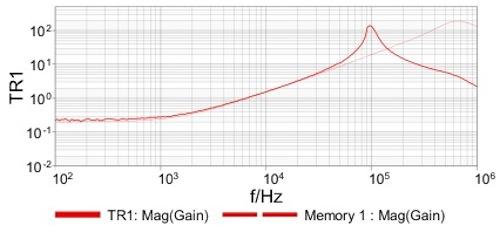

The results also show up in a VNA measurement of the reference output impedance.

One reason engineers get into so much trouble with the control loop stability of these types of devices is that, in many cases, the access to the control loop is not available, so it isn't possible to measure stability directly using traditional Bode plot techniques.

Even though measuring the phase margin directly is not possible, a non-invasive stability method shows the phase margin of the recommended circuit to be about 12 degrees in the typical case.
